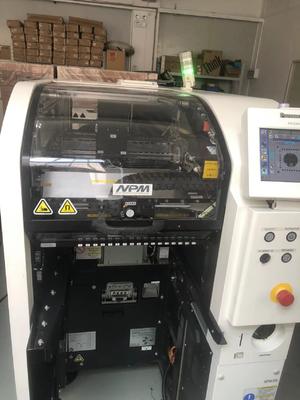

Panasonic NPM D3 Machine High Efficiency SMT Production with Advanced Modular Technology

The Panasonic NPM - D3 is a state - of - the - art surface - mount technology (SMT) placement machine, designed to revolutionize your electronic manufacturing process.

1. High - Performance Placement Heads

- Lightweight 16 - Nozzle Head: In high - production mode (ON), it achieves a top speed of 84,000 cph (0.043s/chip) with a placement accuracy of ±40μm/chip (Cpk≥1), ideal for high - volume production of small - sized components like 0402 chips. When the high - production mode is OFF, the speed is 76,000 cph (0.047s/chip), and the accuracy can reach up to ±30μm/chip (optional ±25μm/chip under specific Panasonic - specified conditions). It can handle components ranging from 03015/0402 chips to L6×W6×T3 components.
- 12 - Nozzle Head: With a maximum speed of 69,000 cph (0.052s/chip) and a placement accuracy of ±30μm/chip (Cpk≥1), it can handle components from 0402 chips to L12×W12×T6.5, suitable for a wider range of component sizes in medium - speed, high - accuracy applications.
- 8 - Nozzle Head: Capable of a maximum speed of 43,000 cph, it offers a placement accuracy of ±30μm/QFP 12 - 32mm and ±50μm/QFP less than 12mm. It can handle components from 0603 chips to large - sized components up to L100×W90×T28, making it suitable for placing larger components such as connectors and some types of integrated circuits.
- 2 - Nozzle Head: Although slower with a maximum speed of 11,000 cph, it has a placement accuracy of ±40μm/chip (Cpk≥1) and can handle components from 0402 chips to L6×W6×T3. It is often used for placing components that require more precise handling or for low - volume production runs of specific components.

2. Flexible Production Modes

- Dual - Track Operation: The NPM - D3 features a dual - track conveyor system, enabling three different production modes: independent production mode, alternating production mode, and a combination of both. In independent production mode, the front and rear heads can work on different PCBs simultaneously, which is highly efficient when producing different product models at the same time. Alternating production mode allows the heads to alternate between the two tracks, reducing idle time and increasing overall productivity. This flexibility means that you can optimize production according to the specific requirements of your PCB designs and production volumes.
- Plug - and - Play Function: Allows for the free configuration of placement heads. This means you can easily customize the machine to suit different production needs. For example, you can quickly change the combination of heads depending on whether you are producing a high - volume run of small - component - dense PCBs or a mix of boards with various component sizes and types.

3. High - Precision and High - Productivity

- High - Rigidity Gantry and Advanced Camera System: The high - rigidity gantry provides a stable base for the placement heads, ensuring accurate movement. The award - winning multi - recognition camera improves placement accuracy by 25% compared to previous models. It combines alignment, thickness, and 3D coplanarity checks in one step, saving time and improving the overall production process. This results in higher - quality assemblies with fewer defects.
- Improved Throughput: Boosts IPC - 9850 throughput by 30% to 38,078 cph per square meter, making it one of the most productive SMT machines in its class. The machine's design and technology are optimized to minimize cycle times and maximize the number of components placed per unit time.

4. User - Friendly System Software

- Comprehensive Production Management: The system software enables the overall management of the production line, production workshop, and factory. It provides real - time monitoring of the production process, allowing you to track production progress, identify bottlenecks, and make adjustments to improve efficiency. You can also plan production schedules more effectively with the support of the line operation monitoring function.
- Efficient Machine Setup and Changeover: Supports easy machine setup and changeover between different production jobs. The software can quickly adjust settings such as track width, placement parameters, and component data, reducing downtime during job changes.

5. Specifications

- Power Supply: Compatible with three - phase AC 200V±10V / AC 220V±10V / AC 380V±10V / AC 400V±10V / AC 420V±10V / AC 480V±10V, with a power consumption of 2.7kVA.
- Pneumatic Source: Requires 0.5MPa, 100L/min (A.N.R.).
- Dimensions: W832mm×D2652mm×H1444mm.
- Weight: Approximately 1680kg (subject to change depending on optional components).

Custom Attributes

- Component Compatibility: Can handle a wide range of components, from the smallest 03015/0402 chips to large - sized components up to L100×W90×T28, including SOP, QFP, CSP, BGA, aluminum electrolysis capacitors, volume controls, trimmers, coils, and connectors.
- Line Integration Capability: The NPM - D3 can be easily integrated into existing production lines. Its modular design allows for seamless connection with other Panasonic SMT equipment, such as printers, inspection machines, and reflow ovens, as well as with third - party equipment, enabling the creation of a highly efficient and customized production line.
- Energy - Saving Features: Designed with energy - saving features in mind, the NPM - D3 helps reduce overall production costs by consuming less power compared to some traditional SMT machines. This is not only beneficial for your bottom line but also for environmental sustainability.
